Maize Flour Milling Machinery

Reference to the Maize Flour Milling Machinery. It is able to mill the corn to get different mesh of corn flour or corn meal / mealie meal. And the final product is used for making our stable food, like ugali, nshima, porridge etc.

Let’s learn more about the Maize Flour Milling Machinery:

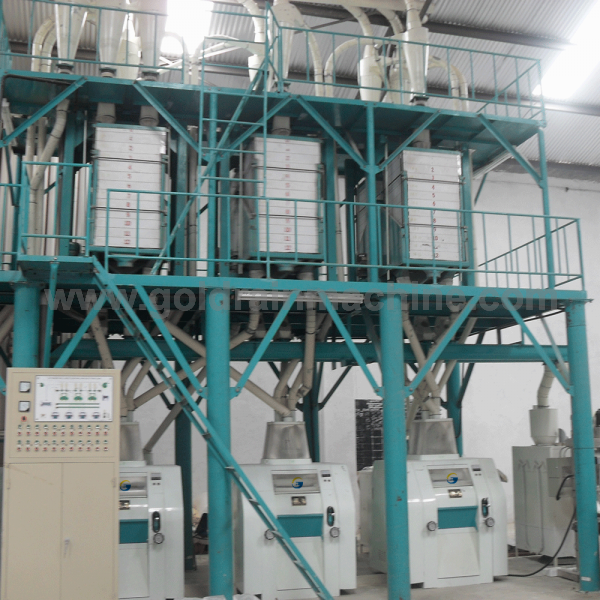

Many single machine make up the corn flour processing line ,the whole line include cleaning section, milling section and packing section.
There are Maize Flour Milling Machinery with input capacity of 5-500 Tonnes. Different capacity have different configuration. The higher configuration with the machine, the better fine flour could be gotten.
Cleaning section:

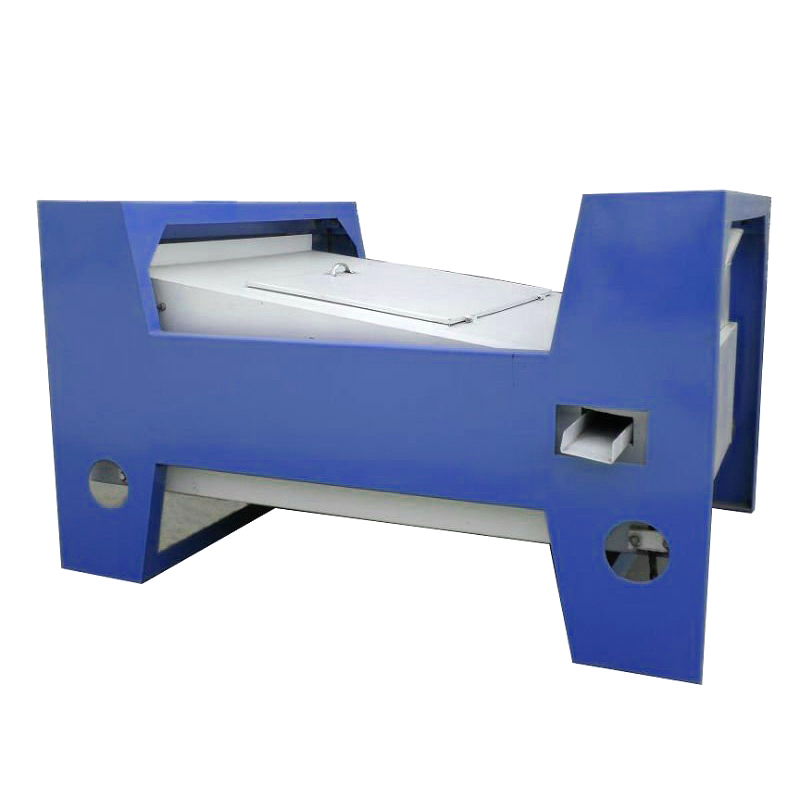

There are some single machine as follows:high-speed vibrating sieve, gravity classify destoner, magnetic separator, corn peeling machine,corn germ selector, plant revolving sifter.
Through out above machine,the dirty raw corn will turn to the clean corn and up to the suitable moisture to mill.

Milling section:

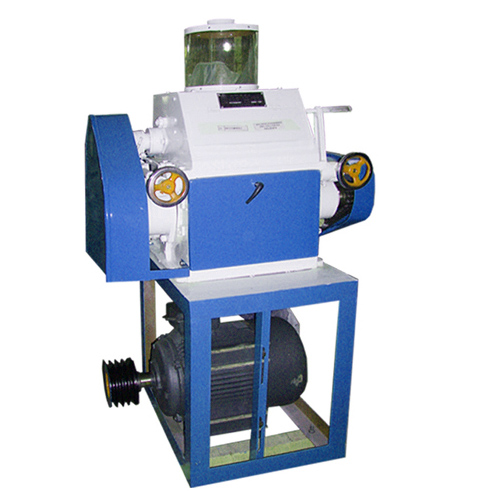

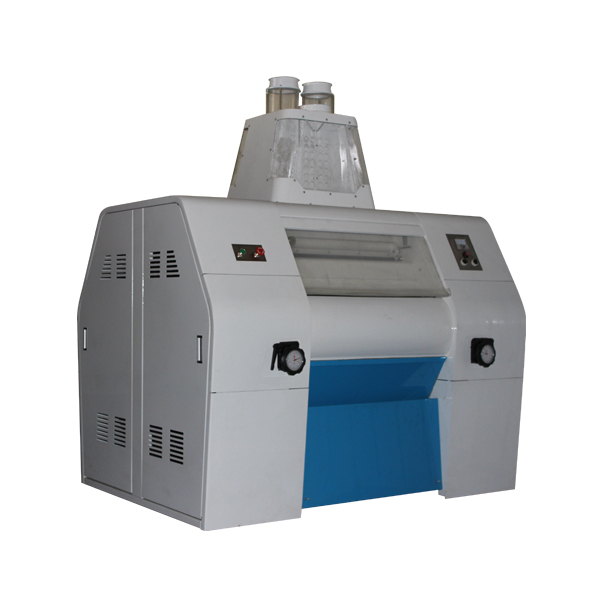

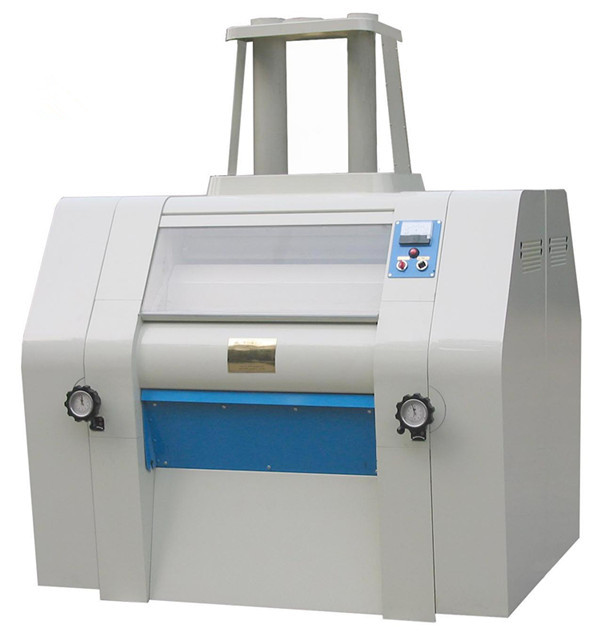

There are different type of Roller Mill with roller size 2235, 2240, 2250, 2450 etc. The mill is main machine to mill corn to get final product we need.

In order to get different final products, we use Double Bin Sifter and Plan Square Sifter to Sift the flour, Bran Brusher  to collect more flour from the bran, improve the flour extraction rate.

Packing section:
The small capacity of corn flour making machine line is packing by manual,and the big capacity is suit to use automatic weighting &sewing scale.The automatic one have two type:10-25kg,25-50kg.

•
