6FYDT-100 Maize Grits Mill

Short Description:

Product Detail

Product Tags

6FYDT-100 Maize Grits Mill

Technical Parameters
Capacity: 100 Ton / Day Super Fine Flour: 80~85%
Final Products: Corn Flour,corn Grits Dimension: 39000*12000*19000 mm
Container: 40″GP * 4

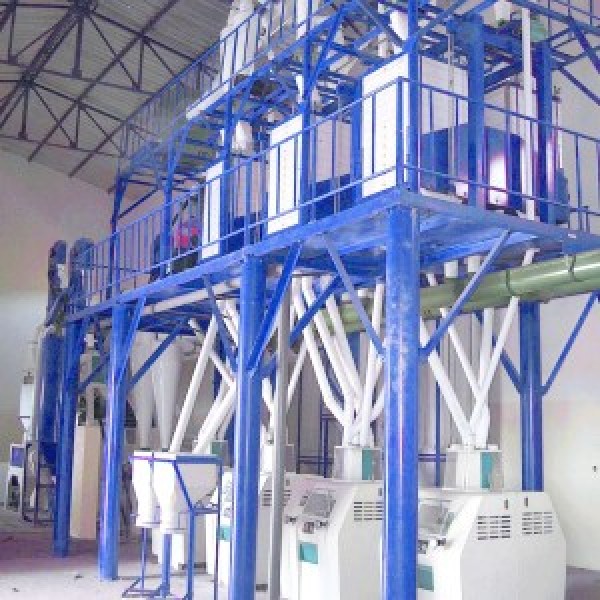

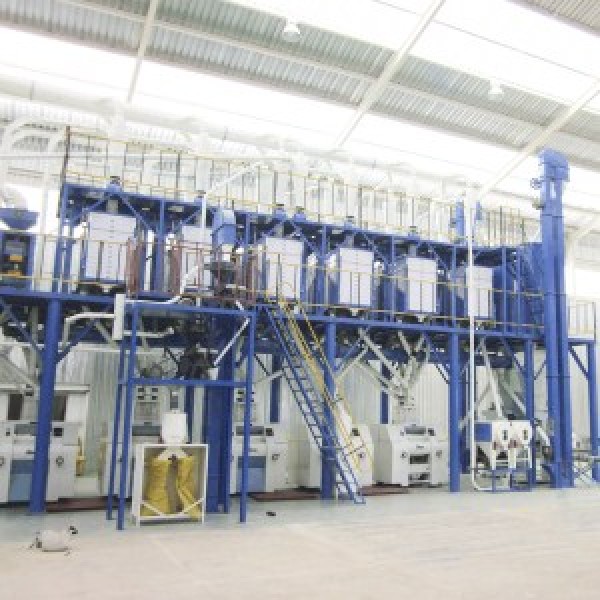

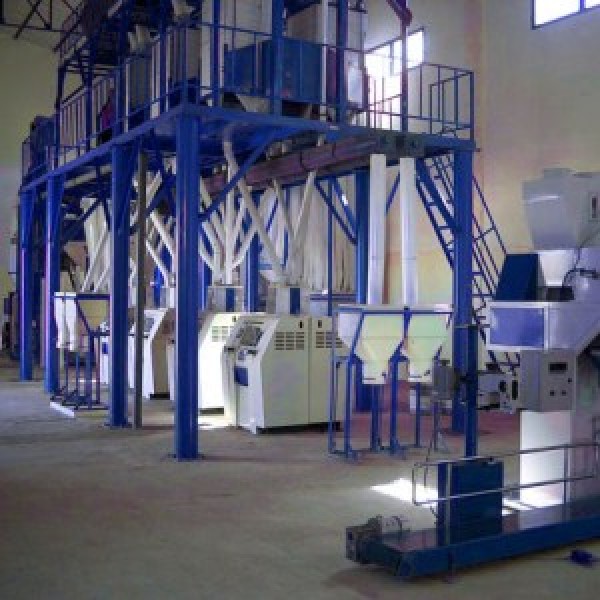

We Goldrain offer Maize Grits Mill with different models, small scale maize mill are horizontal structure, such as 5 ton—30 ton / day corn mill line, some middle scale Maize milling machine is Vertical steel structure, such as 100 tons –150 tons per day Corn flour mill, while for the large capacity Maize milling plant it is Building structure .

1.Production capacity: 10-300 Ton (maize)/24 H

2.  Products variety:

1) Maize fine flour, all through 44 mesh (400 micron) sieve

2) Maize rice;

3) Maize germ;

4) Maize bran;

5) Coarse Fodder.

3.  Extraction rate:

1)  Fine Maize flour: 30~40%

2)  Maize rice: 35-40%
3)  Maize germ: 8-10%

4)  Maize bran and Fodder flour: 10-14%

The flour extraction rate could be adjustable according to your requirement.
