High-Efficiency 440W Solar Modules for Home Solar Hybrid Systems
MECHANICAL PARAMETERS
| Cell |
Mono |
| Weight |
20kg |

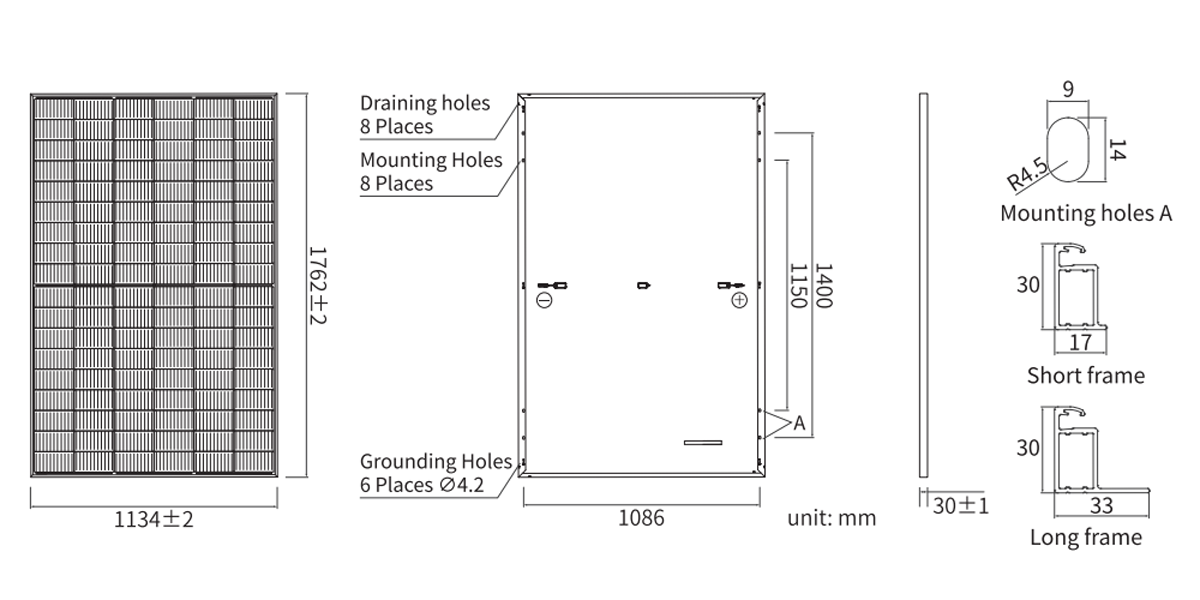

| Dimensions |
1762士2mmx1134士2mmx30士1mm |
| Cable Cross Section Size |
4m㎡(lEC), 12 AWG(UL) |
| No. of cells |
108(6×18) |
| Junction Box |
IP68, 3diodes |
| Connector |
QC4.10-351/MC4-EVO2A |
| Cable Length
(including Connector) |
Portrait:300mm(+)/400mm(-) Landscape: 1200mm(+)/1200mm(-) |
| Front Glass |
2.8mm |
| Packaging Configuration |
36pcs/Pallet,936pcs/40ft Container |
Remark: customized frame color and cable length available upon request.
